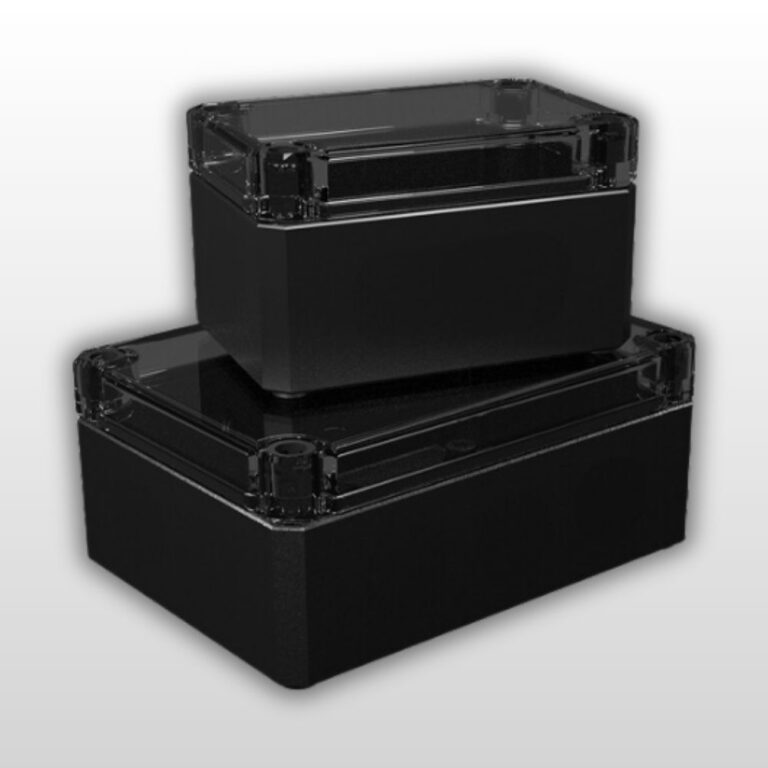

Junction Box MBI-BK-OK

Black, PC, IP66, RAL9005

ORDER:

Description

Junction Box MBI-BK-OK BLACK – THE HIDDEN CHAMPION – Remarkably invisible.

Junction Box MBI-BK-M BLACK is the perfect combination of discreet presence, modern design and excellent technical performance.

The base is designed with flat side walls. These can be processed mechanically according to the customer's wishes. The bottom of the box is supplied in black and the lids are transparent in this version.

Its black design integrates seamlessly into industrial environments and enables a discreet, almost invisible installation in factory halls, control cabinets, camera systems or elevator installations. Thanks to its design in elegant black color and clean shapes, MBI-BLACK boxes have a modern appearance.

Meets high technical requirements

In addition, they reliably meet the high technical requirements of industrial installation technology. Bases are made of glass fibre reinforced polycarbonate. The material is UV-resistant (UL 746C F1) and self-extinguishing (UL 94 V0). The transparent covers are also made of UV-resistant polycarbonate (UL 746C F1) and comply with the flammability classification UL 94 V2.

Depending on quantities, we can produce customer-specific mould sides. Individual knockouts, cutouts and hole designs can be implemented in the injection mould and there is no requirement for further mechanical processing.

MBI BLACK enclosures offer a variety of mounting points for direct fixation of components into the base. Self-tapping plastic screws for assembly are included in the scope of delivery.

Customize your box

Mounting & Assembly | Printing | Design | Color | Punching

PRODUCT INFORMATION

  • Material botten:Glass fiber reinforced polycarbonate, UV resistant (UL 746C F1) and self-extinguishing (UL 94 V0)
  • Material lock: Polykarbonat, UV-beständigt (UL 746C F1) och självsläckande (UL 94 V0)
  • Color: RAL9005
  • Material gasket: Polyurethane
  • Material screws: Plastic
  • Operating temperature: -40°C- 100°C
  • Protection class: IP66
  • Impact resistance: IK08

Article number

Art.NoWidthHeightDepthPDFDrawing
0907109760655794.pdf.stp
09071039609457130.pdf.stp
09071089609457180.pdf.stp
090710117011011066.pdf.stp
090710839013090180.pdf.stp
090710889018090182.pdf.stp
0907105810180111254.pdf.stp

I want more information about Junction Box MBI-BK-OK
