Kabelgenomföringsplatta | KEL-DPZ-Rund

Multi-membrane | threading M25 - M63 | IP66 - IP68 | UL Type 12/4X*

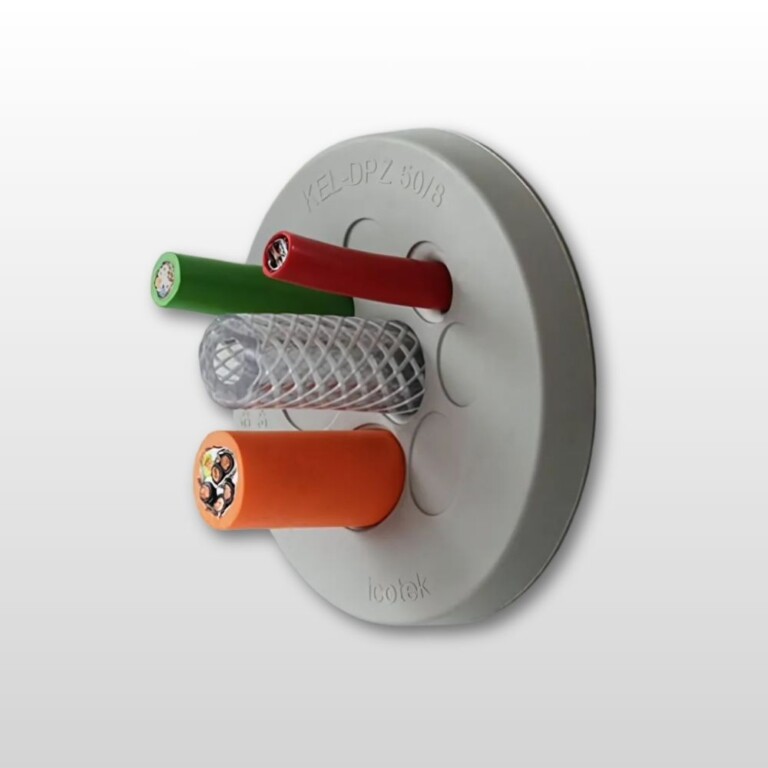

KEL-DPZ Round is a cable entry plate for sealing cables without contact or fiber, developed for applications with high requirements for protection class.
It enables quick installation in metric holes with high cable density and effective strain relief.

Specification

Article:	KEL-DPZ-Round
Category:	Cable entry plates & multi-flanges
Brand:	icotek
Protection class:	IP54, IP55, IP64, IP65, IP66, IP67, IP68
UL Type:	UL Type 12, UL Type 4X*
Flammability:	UL94-V0, self-extinguishing
Temperature:	-40°C to 100°C
Material:	Elastomer
Material Base frame:	Polyamide
Mounting options:	Fasten with locknut
Characteristics:	Silicone-free, Halogen-free

Do you need more information?

Download product PDF

Product description

Cable entry plate / KEL-DPZ-Round are designed to route and seal cables without connectors or fiber optics (from 1.5 mm to 22 mm in diameter) in limited space.

The KEL-DPZ round can be installed with cables or pneumatic hoses quickly and easily. Simply make a small hole in the thin membrane and push the cables through. The KEL-DPZ round provides strain relief and protection IP66 / IP68 / UL type 4X*.

The round versions of the KEL-DPZ series have a thread that fits into metric holes from M25 to M63.
ST-B plugs can be used to seal pierced diaphragms if cables have been removed.
*4X for indoor use only

Advantages:

Quick assembly
High cable density
Certified protection types IP66/IP68 (according to EN 60529)
Automatic sealing and strain relief for the cable
Suitable for metric hole punching
Lock nut included
Hygienic design – free from dirt-collecting depressions

Drawing

Video

Documents & Other

Download the PDF

Art.No	Description	Number of Cables	Max Kabeldia.	Color	Ytter Dia.	Reaming Metric	Cable. Interval	Unit	Pc
43732	KEL-DPZ 32\|4	4	12.5	gray	44	M32	3 x 3.2-6.5 mm \| 1 x 7.2-12.5 mm	st	10
43733	KEL-DPZ 32\|4-2	4	9.5	gray	44	M32	4 x 5-9.5 mm	st	10
43734	KEL-DPZ 32\|7	7	6.5	gray	44	M32	7 x 3.2-6.5 mm	st	10
43736	KEL-DPZ 25\|3	3	6.5	gray	39	M25	2 x 3.2-5.2 mm \| 1 x 3.2-6.5 mm	st	10
43737	KEL-DPZ 25\|4	4	5.2	gray	39	M25	4 x 3.2-5.2 mm	st	10
43741	KEL-DPZ 40\|08	8	10.2	gray	52	M40	4 x 3.2-6.5 mm \| 4 x 5-10.2 mm	st	10
43750	KEL-DPZ 50\|8	8	12.5	gray	62	M50	5 x 5-10.2 mm \| 3 x 7.2-12.5 mm	st	10
43751	KEL-DPZ 50\|10	10	22.2	gray	62	M50	7 x 3.2–6.5 mm \| 2 x 5–10.2 mm \| 1 x 16–22.2 mm	st	10
43752	KEL-DPZ 50\|12	12	10.2	gray	62	M50	4 x 3.2-6.5 mm \| 8 x 5-10.2 mm	st	10
43756	KEL-DPZ 50\|78	78	5	gray	62	M50	76 x 1.5-2.6 mm \| 2 x 2.5-5 mm	st	10
43758	KEL-DPZ 50\|19	19	6.5	gray	62	M50	19 x 3.2-6.5 mm	st	10
43760	KEL-DPZ 63\|9	9	22.2	gray	75	M63	1 x 3.2-6.5 mm \| 3 x 5-10.2 mm \| 4 x 9-16.2 mm \| 1 x 16-22.2 mm	st	10
43761	KEL-DPZ 63\|13	13	16.2	gray	75	M63	4 x 3.2-6.5 mm \| 4 x 5-10.2 mm \| 5 x 9-16.2 mm	st	10
43762	KEL-DPZ 63\|14	14	10.2	gray	75	M63	14 x 5-10.2 mm	st	10
43763	KEL-DPZ 80\|50	35	6.5	gray	75	M63	35 x 3.2-6.5 mm	st	10
50732	KEL-DPZ 32\|4	4	12.5	black	44	M32	3 x 3.2-6.5 mm \| 1 x 7.2-12.5 mm	st	10
50733	KEL-DPZ 32\|4-2	4	9.5	black	44	M32	4 x 5-9.5 mm	st	10
50734	KEL-DPZ 32\|7	7	6.5	black	44	M32	7 x 3.2-6.5 mm	st	10
50736	KEL-DPZ 25\|3	3	6.5	black	39	M25	2 x 3.2-5.2 mm \| 1 x 3.2-6.5 mm	st	10
50737	KEL-DPZ 25\|4	4	5.2	black	39	M25	4 x 3.2-5.2 mm	st	10
50741	KEL-DPZ 40\|08	8	10.2	black	52	M40	4 x 3.2-6.5 mm \| 4 x 5-10.2 mm	st	10
50750	KEL-DPZ 50\|8	8	12.5	black	62	M50	5 x 5-10.2 mm \| 3 x 7.2-12.5 mm	st	10
50751	KEL-DPZ 50\|10	10	22.2	black	62	M50	7 x 3.2–6.5 mm \| 2 x 5–10.2 mm \| 1 x 16–22.2 mm	st	10
50752	KEL-DPZ 50\|12	12	10.2	black	62	M50	4 x 3.2-6.5 mm \| 8 x 5-10.2 mm	st	10
50756	KEL-DPZ 50\|78	78	5	black	62	M50	76 x 1.5-2.6 mm \| 2 x 2.5-5 mm	st	10
50758	KEL-DPZ 50\|19	19	6.5	black	62	M50	19 x 3.2-6.5 mm	st	10
50760	KEL-DPZ 63\|9	9	22.2	black	75	M63	1 x 3.2-6.5 mm \| 3 x 5-10.2 mm \| 4 x 9-16.2 mm \| 1 x 16-22.2 mm	st	10
50761	KEL-DPZ 63\|13	13	16.2	black	75	M63	4 x 3.2-6.5 mm \| 4 x 5-10.2 mm \| 5 x 9-16.2 mm	st	10
50762	KEL-DPZ 63\|14	14	10.2	black	75	M63	14 x 5-10.2 mm	st	10
50763	KEL-DPZ 80\|50	35	6.5	black	75	M63	35 x 3.2-6.5 mm	st	10
