Adapter grommet / AT-PP
IMAS-CONNECT™ | For PushPull connectors | IP66
Specification
| Article: | Adapter Grommet / AT-PP |
|---|---|
| Category: | Cable glands for cables with connectors, Cable entry systems for cables with connectors |
| Brand: | icotek |
| Protection class: | IP54, IP55, IP64, IP65 |
| Material: | Elastomer |
| Material Base frame: | Polyamide |
| Flammability: | UL94-V0, self-extinguishing |
| Temperature: −40°C to 90°C | Characteristics: |
Do you need a price & more information?
Product description

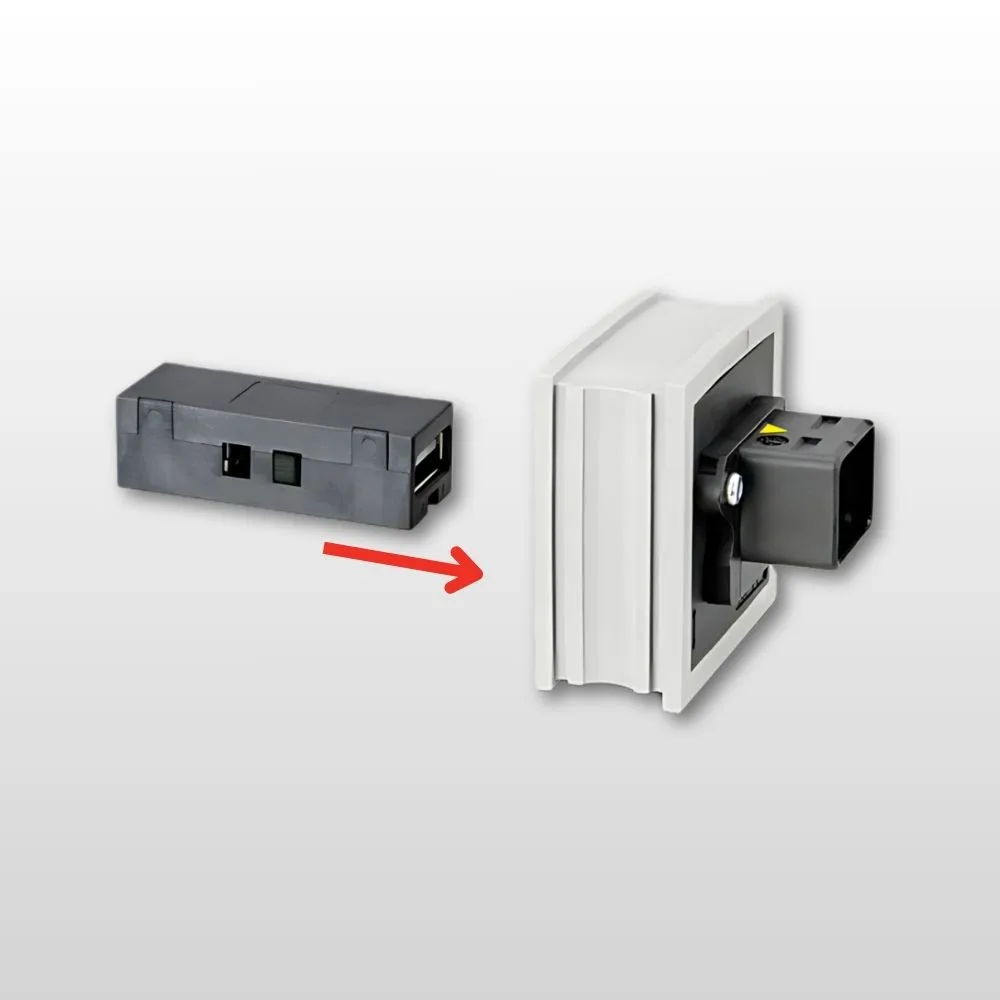

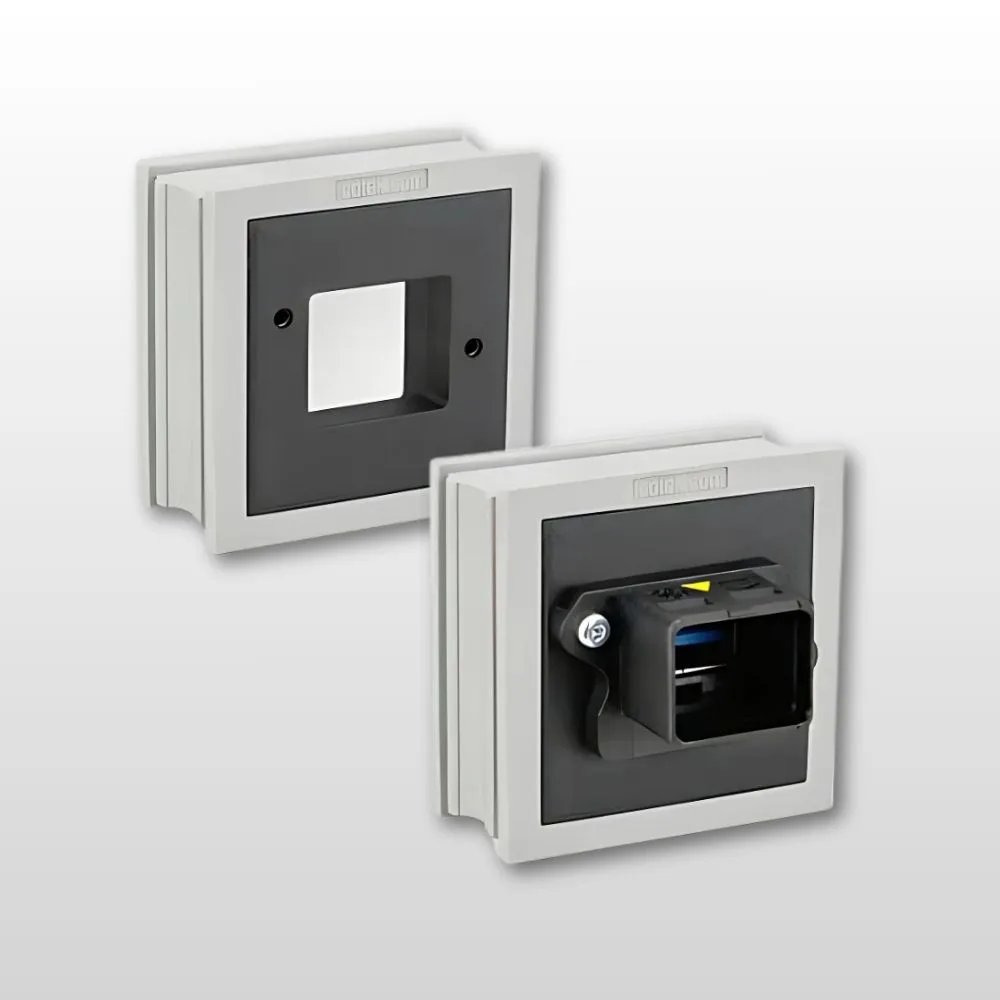

The Adpater Grommet / AT-PP is based on a large KT grommet. In this implementation there is a polyamide body. With the screw-on housings, all the modules in the "compact" category that have a PushPull system can be inserted into the feed-through. With the Adapter grommet / AT-PP, the split cable entry can be used to pass through pre-assembled cables and serve as an interface. In this way, wall breakouts and labor costs can be reduced.
- PushPull modules and the housings are not included in the shipment.
AT-PP is compatible with:
Cable glands for cables with connectors
Cable entry systems for cables with connectors
Advantages:

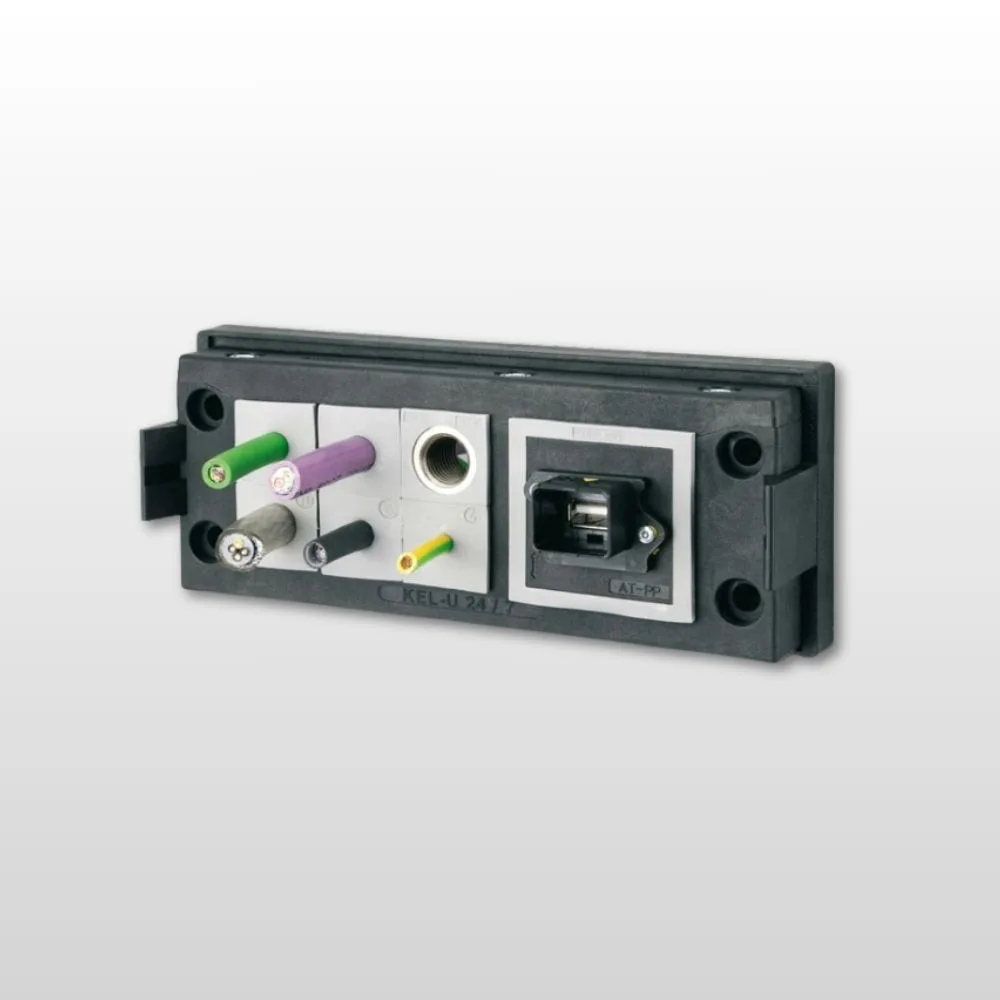

- By utilising the AT-PP grommet, connectors can be integrated directly into the cable entry frame
- Separate cut-outs for connectors are no longer necessary
- Space-saving design
- Grommet is suitable for PushPull housings
- Cost-saving assembly
