Adapter grommet / AT-KS
IMAS-CONNECT™ | For Keystone sockets | IP54
AT-KS is an adapter insert based on a KT cable gland for integrating Keystone interfaces into industrial installations.
The adapter insert enables the passage of cables with or without a connector and creates a Keystone interface directly in the cable entry frame without the need for separate drilling.
Specification
| Article: | Adapter grommet / AT-KS |
|---|---|
| Category: | Cable glands for cables with connectors, Cable entry systems for cables with connectors |
| Brand: | icotek |
| Protection class: | IP54 |
| Material: | Elastomer |
| Material Base frame: | Polyamide |
| Flammability: | UL94-V0, self-extinguishing |
| Temperature: | −40°C to 100°C |
| Characteristics: | Silicone-free, halogen-free |
Do you need a price & more information?
Product description

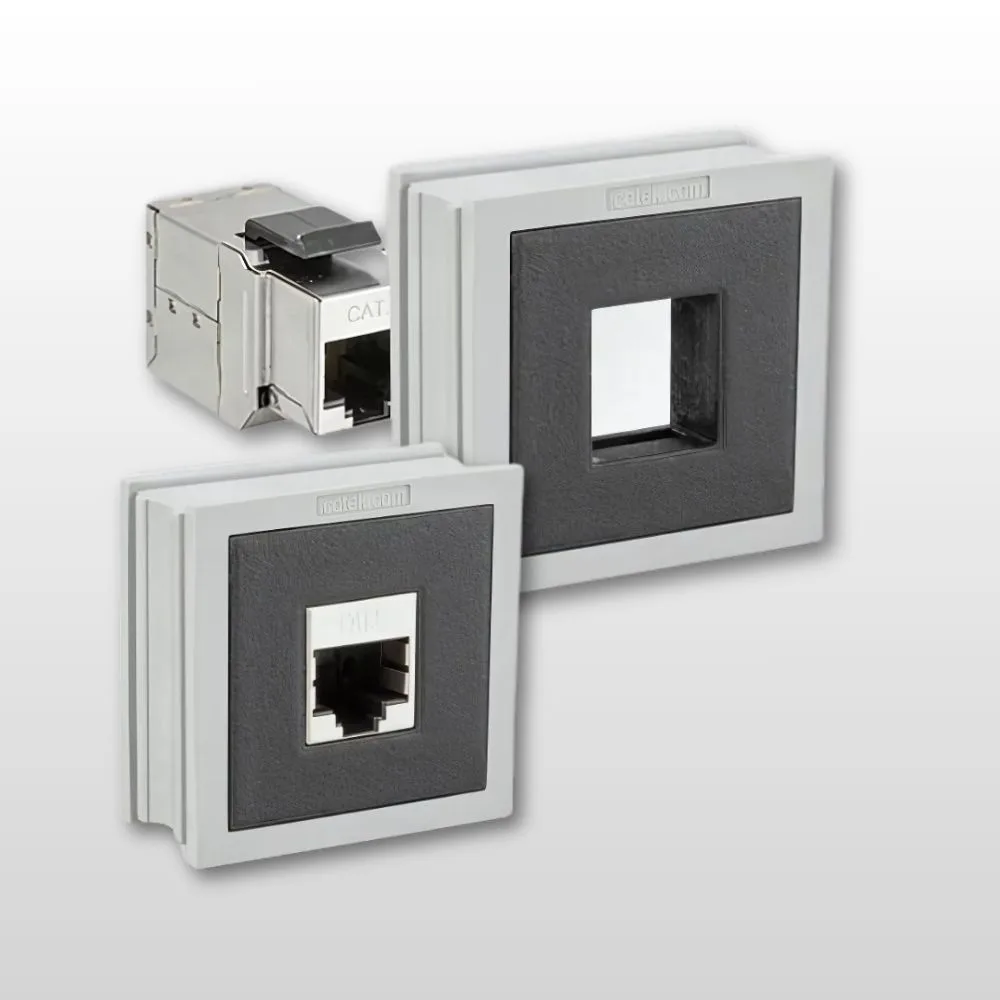

Adapter insert / AT-KS is designed on the basis of a large KT bushing. The polyamide body is molded with elastomer.
The cut-out enables a snap-in assembly of all couplers based on the Keystone system. If required Keystone jack can be disassembled with a screwdriver.
The insertion of AT-KS into an icotek cable entry frame enables the routing of cables with and without connectors in combination with the creation of interfaces for Keystone couplers within one cable entry system. Separate cut-outs for connectors are no longer necessary.
AT-KS provides ingress protection of up to IP54 (depending on the Keystone coupler type and manufacturer).

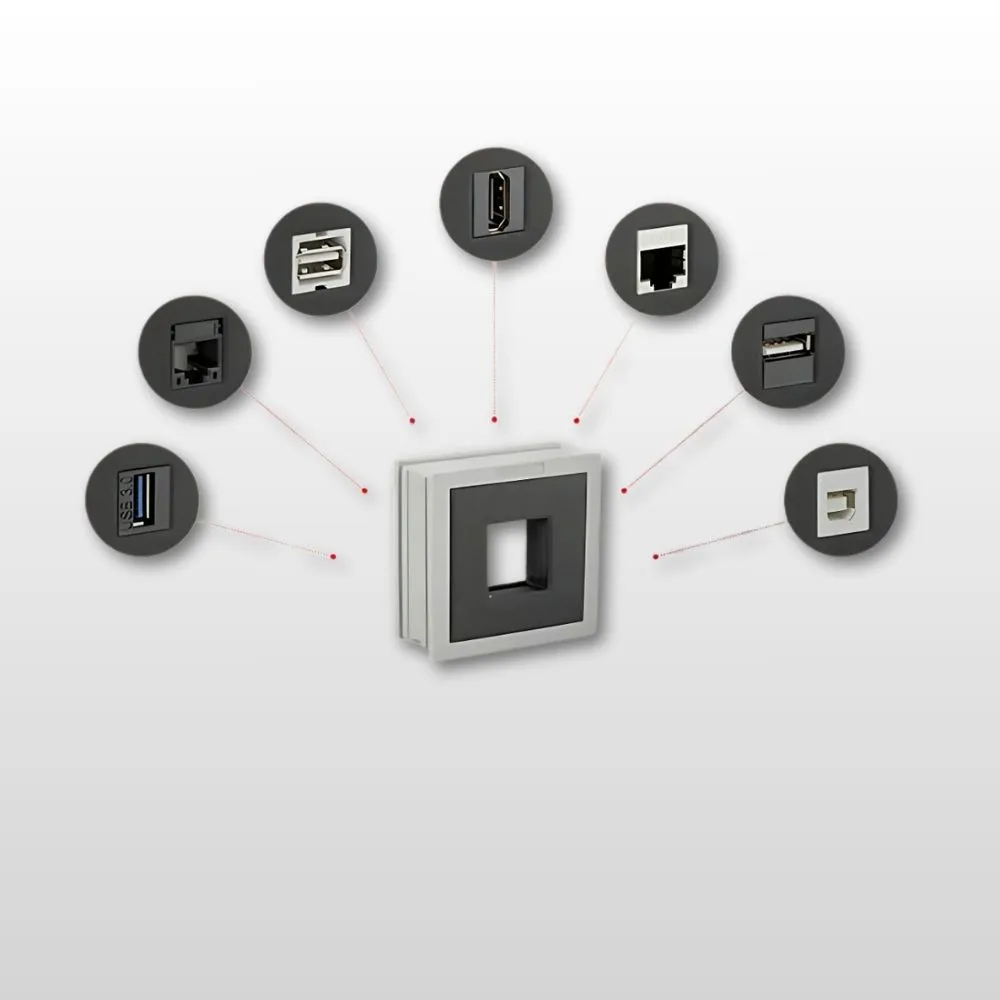

AT-KS is compatible with:
Cable glands for cables with connectors
Cable entry systems for cables with connectors
Advantages:
- Connectors can be integrated directly into the cable entry frame
- Separate cut-outs for connectors are no longer necessary
- Space-saving design
- Grommet is suitable for all Keystone couplers
- Snap-in assembly
