Adapter grommet / AT-FL
IMAS-CONNECT™ | For M23 square flange | IP65
Specification
| Article: | Adapter grommet / AT-FL |
|---|---|
| Category: | Cable glands for cables with connectors, Cable entry systems for cables with connectors |
| Brand: | icotek |
| Protection class: | IP54, IP55, IP64, IP65 |
| Material: | Elastomer |
| Material Base frame: | Polyamide |
| Flammability: | UL94-V0, self-extinguishing |
| Temperature: | −40°C to 90°C |
| Characteristics: | Silicone-free, Halogen-free |
Do you need a price & more information?
Product description

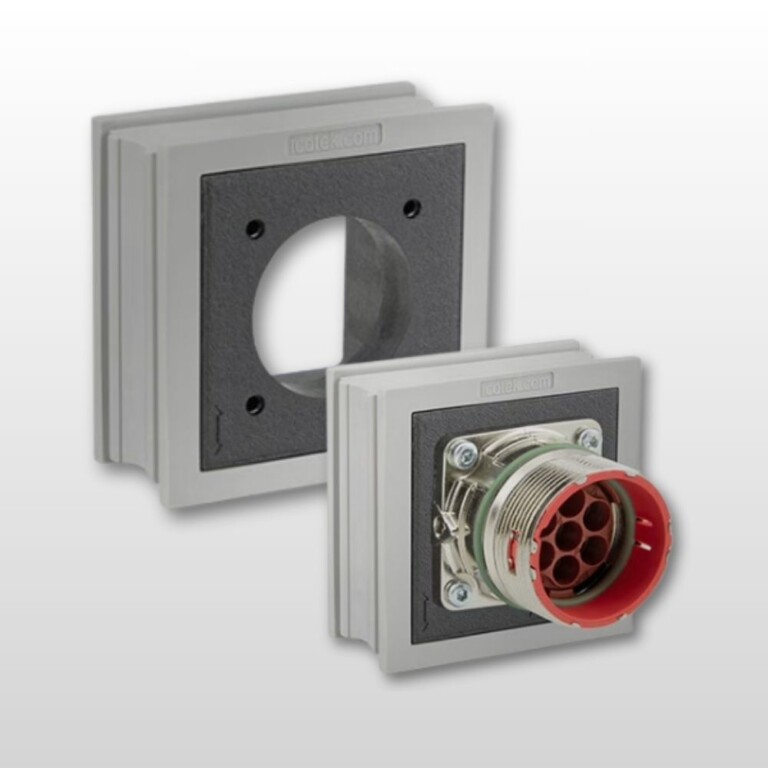

Adapter insert / AT-FL is based on a large KT bushing. This bushing has a polyamide body. All square flanges with dimensions of 19.8 x 19.8 mm (M23) can be integrated. With the AT-FL, the split cable entry can be used to feed through pre-assembled cables and serve as an interface. This reduces wall excavation and labor costs.
- AT-FL protects up to IP65 (depending on flange and connector)
AT-FL is compatible with:
Cable glands for cables with connectors
Cable entry systems for cables with connectors
Advantages:
- By utilising the AT-FL grommet, connectors can be integrated directly into the cable entry frame
- Separate cut-outs for connectors are no longer necessary
- Space-saving design
- Cost-saving assembly
Drawing
Article number
Accessories
Video
Document
You might also like....
Split cable entry frame for cables with connectors
IP66 | UL Type 12/4X*
For cables with connector | IP54
For cables with or without connector | M32-M75 | IP54

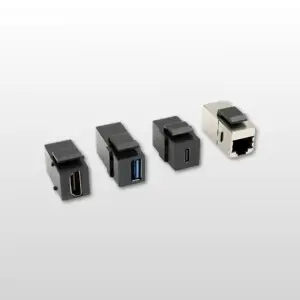

For Adapter Inserts IMAS-CONNECT™ | USB-C, USB 3, HDMI, CAT6
