Accessories for fan motors
Touch protection, frame, filter, cable
Specification
| Article: | Accessories for fan motors |
|---|---|
| Category: | Ventilation & Drainage |
Do you need a price & more information?
Product description

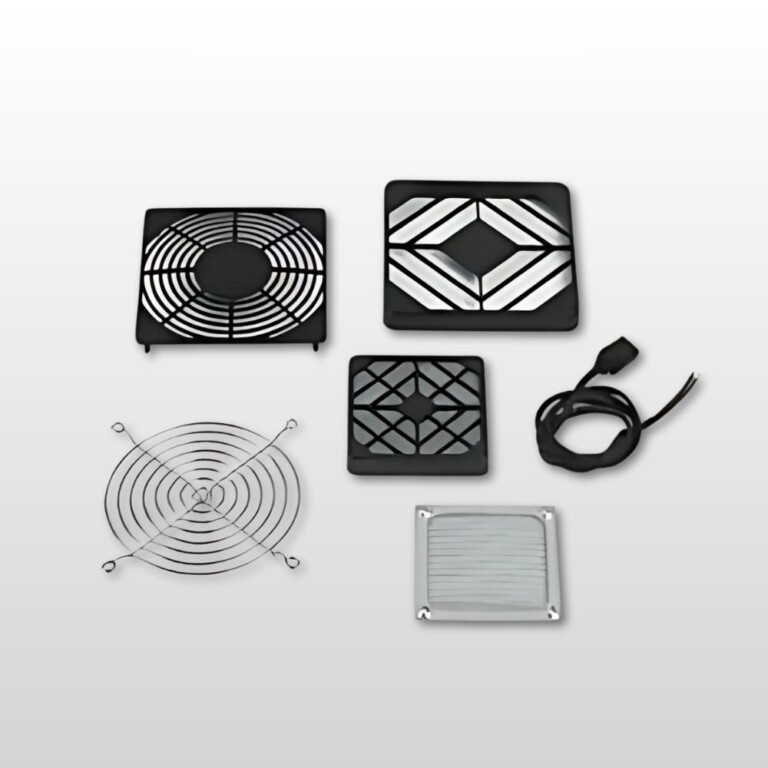

Here you will find a variety of accessories for fan motors. Fan frame with snap mount to hold your fan motor in place. Connection cable for power supply and touch protection in metal and black polyamide.
- We also have filters to build your own filter fan.
Drawing
Article number
| Art.No | Description | Type | Width mm | Height mm | Length mm | Protection class | Color |
|---|---|---|---|---|---|---|---|
| MLV200 | Fan frame MLV200 | For Fan Motor 120×120 | 120 | 120 | IP20 | RAL7035 | |
| IC6G2E | Touch protection IC6G | Ni/Cr | For Fan Motor 60×60 | 60 | 60 | IP20 | Metal | |
| IC6G3E | Touch protection IC6G | Ni/Cr | For Fan Motor 80×80 | 80 | 80 | IP20 | Metal | |
| IC6G4E | Touch protection IC6G | Ni/Cr | For Fan Motor 120×120 | 120 | 120 | IP20 | Metal | |
| 6G80 | Touch protection 6G | PA | For Fan Motor 60×60 | 60 | 60 | IP20 | RAL9005 | |
| 6G80 | Touch protection 6G | PA | For Fan Motor 80×80 | 80 | 80 | IP20 | RAL9005 | |
| 6G12 | Touch protection 6G | PA | For Fan Motor 120×120 | 120 | 120 | IP20 | RAL9005 | |
| FE60 | Fan filter FE | For Fan Motor 60×60 | 60 | 60 | IP20 | RAL9005 | |
| FE80 | Fan filter FE | For Fan Motor 80×80 | 80 | 80 | IP20 | RAL9005 | |
| FE120 | Fan filter FE | For Fan Motor 120×120 | 120 | 120 | IP20 | RAL9005 | |
| IC9T4E | Connection cable IC9T4E | To Fan Motor | 500 | RAL9005 |
