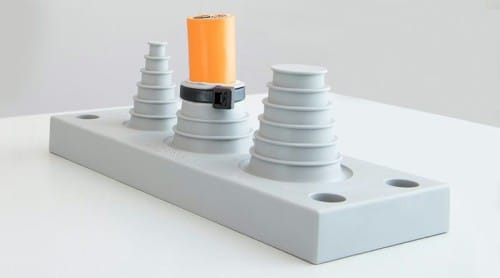

New Cable entry plate with pyramid-shaped membranes!

The new KEL-DPFR cable entry plate from Icotek allows the insertion of multiple cables with different cable diameters from 3 to 28 mm up to IP66. A great advantage when the exact cable diameter is not known in advance.

Maximum flexibility!

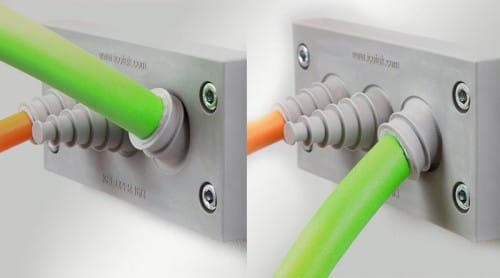

Thanks to the flexibility of the membranes and the unique pyramid shape, routing rigid cables is much easier compared to using traditional cable glands.

The perforation of the KEL-DPFR fits the standard cut-outs for 16- and 24-pin industrial connectors.

It is recommended to provide additional strain relief for the cables by means of a cable tie attached to the end of the pyramid membrane.

For the cutting of the pyramid membrane, the cable diameter minus 20% is recommended.
