Fredrik Roslund

The strongest enclosure on the market - MBX Pro

by
Marknadens Starkaste Plastkapsling - Featured
The strongest enclosure on the market - MBX Pro

Icotek Smart cable management. As an official partner for Icotek in Sweden, we want to briefly and concisely show the range from the leading manufacturer in smart and innovative cable management!

Marknadens Starkaste Plastkapsling - MBX 2

Extremt tät och slagtålig! Marknadens starkaste plastkapsling.

MBX PRO is the most durable plastic enclosure on the market and has been designed specifically for use in demanding industrial and outdoor applications.

Read more about MBX PRO

Dust, water, heat, cold or mechanical impact are no problem!

Skyddsklass IP69 & IP66

MBX PRO enclosures offer excellent protection for sensitive electronics even in extremely demanding environments.

The strongest enclosure on the market - MBX Pro

MBX-PRO – överlägsen täthet med flernivåskonstruktion och skyddsram

The new multi-level sealing design with a surrounding protective frame absorbs the force of the impacting water jet. The seamlessly foamed PU gasket is completely protected behind the frame. In this way, the MBX-PRO enclosure achieves significantly better tightness and higher protection class than comparable standard enclosures on the market.

Read more about MBX PRO

Extremely impact resistant and very durable!

Impact resistance level IK10

MBX PRO enclosures are made of a newly developed, impact-resistant and weather-resistant polycarbonate material.

Thanks to an optimized molecular structure, the material is significantly more durable than conventional industrial polycarbonate and retains its technical properties even at temperatures below 0°C.

Thanks to our own plastic injection manufacturing, we have direct influence over the entire value chain of our products and guarantee the highest quality.

Fire protection in the best class!

  • Fire rating UL94 V-0/5V

Flexitast – The innovative Display button

by
Flexitast - Featured

As proud Swedish supplier of Schlegel actuators, C-Pro presents Flexitast - The innovative Display Button.

Flexitast, the revolutionary pushbutton with integrated display is offering versatile and dynamic display options. Being equipped with a 72 x 72 pixel ZBD display, specially developed for SCHLEGEL, and an RGB backlight, Flexitast enables the flexible display of texts and symbols. Thanks to the special display technology, the screen content stays visible even without power connection. The elegant design and the fact that the display is protected by break resistant glass make the Flexitast an efficient and robust solution for a wide range of applications.

Flexistast - The innovative display button 3
Ladda ner PDF och läs mer om Flexitast

Simple, intuitive configuration

All types of Flexitast buttons can be configured via web browser. To do this, the individual button or the gateway of the Flexitast system is connected to a web-enabled device via USB cable and uploaded into the frontend. Once the connection to the Flexitast or gateway is established, the individual button or the system can be configured.

The following options are available:

  • Assigning a symbol for the state activated/deactivated
  • Assigning the background colour pressed/not pressed
  • Assigning blinking yes/no for pressed/not pressed
  • All Schlegel standard symbols are available
  • You can also upload and activate your own symbols

You can test the configuration here

Flexitast - Den innovativa display knappen 2

The advantages of Flexitast:

  • Special 72 x 72 pixel ZBD display
  • Display size 26.5 x 26.5 mm
  • Robust construction, display protected by break resistant glass
  • Flexible display of texts/symbols
  • RGB backlight
  • Display content stays visible even without power connection
  • Excellent illumination and display of texts and symbols
  • No burn-in of display content
  • Integrated temperature sensor (display protection)
  • Comfortable haptic and tactile response
  • Elegant design
  • Sustainable and environmentally friendly (no plastic nameplates necessary)
  • Saves time and costs in procurement and storage (only 1 product necessary)
  • More than 1 million switching cycles, degree of protection IP65, operating temperature -10 °C to 50 °C

Flexitast as a system

In a system, the control is done via a bus system in which up to 128 Flexitast buttons can be connected. The Flexitast gateway controls the communication and parameterisation of the individual Flexitast buttons and also acts as an interface to the external system. Events can be recorded via the external system and are transferred to the gateway, for example to change the symbol for a specific Flexitast button, to make several ones flashing, or to change the background colour of all connected buttons. The specific applications can be very diverse: be it changing the texts in different languages ​​before delivery to the customer or an active warning in critical situations using red flashing warning symbols. Each Flexitast button is connected to the next via a cable, whereby the maximum distance between two buttons is 5 meters and the total length of the connection can be up to 30 meters

The configuration is done via the browser on a PC that is connected to the gateway via USB cable.

Possibilities of configuration

  • Symbols/texts (normal/activated)
  • Illumination/blinking (normal yes/no), activated (yes/no)
  • Colours within a system or operating unit: full spectrum of colours is possilbe
  • Additional features are possible for customised variants
Flexitast as a system

Variants

Flexitast as a single button

The Flexitast as single button is controlled by an external system, for example by PLC or IPC. The controller can also record events such as pressing the Flexitast button or exceeding a critical value of a level indicator and adjust the Flexitast button accordingly. The symbol on the button can, for example, be changed or a flashing red background can be displayed as a warning. The configuration is carried out conveniently via the browser on a PC, which is connected to the Flexitast button via USB cable.

Possibilities of configuration

  • Symbols/texts (normal/activated)
  • Illumination/blinking (normal yes/no), activated (yes/no)
  • Colours: white, red, green, blue, yellow, magenta, cyan
Flexitast as a single button

Would you like to get familiar with our Flexitast now?

Please feel free to contact us. We look forward to hearing from you.

E NUX – Assembled cabinets for industry and IT​

by
E NUX – Assembled cabinet for industry and IT

E NUX is an advanced and assembled cabinet system developed by the Italian manufacturer ETA S.p.A. The system is designed to meet the high demands in industrial automation, energy distribution and IT infrastructure. With its robust construction and flexible design, E NUX offers a safe and adaptable solution for a variety of applications.

Construction and Design

E NUX is built with a self-supporting frame structure made of high-strength sheet steel, allowing for easy assembly and disassembly of side panels and doors. The modular design makes it simple to customize the enclosures according to specific requirements, ensuring smooth installation and maintenance. The enclosures are available in various sizes and configurations and can easily be equipped with additional accessories to suit different applications.

The system comes with a blank front door and a rear panel, both equipped with a lever-operated double-rod locking system for enhanced security.

Technical Specifications

  • Protection class: IP55 according to IEC EN62208 and EN60529, ensuring high resistance to dust and water ingress.
  • Impact Resistance: IK10 according to IEC EN62208 and EN62262, providing strong protection against mechanical impacts.
  • Material: Sheet steel with a standard color in RAL7035, offering both aesthetics and corrosion protection.
Read more about E NUX cabinet

Customization options

E NUX offers a comprehensive range of accessories to tailor the cabinet to specific needs. Options include various mounting plates, cable management solutions, protective roofs and plinths. There is also the option to upgrade the cabinet to a data cabinet for IT applications, making it a versatile solution for various industries.

Areas of use

Thanks to their robustness and flexibility, E NUX enclosures are used in a variety of sectors, such as:

  • Industrial automation: Protection and organization of control systems and electronics.
  • Energy distribution: Housing of electrical distribution equipment and protective devices.
  • IT infrastructure: Can be used as a data cabinet for network equipment and servers.

Availability in Sweden

In Sweden, E NUX is distributed by C-Pro AB, which offers the full range of ETA's control cabinets and accessories. For more information about the products, specifications and orders, please visit:

  • C-Pro AB – Swedish distributor of E NUX enclosures.

E NUX enclosures combine Italian engineering with advanced technology to deliver a reliable and flexible solution for industrial and commercial applications.

Market innovation!

by
Marknadens innovation - featured
Market innovation

C-PRO AB, your leading supplier in electricity and automation, now offers the market's innovation, the the modular interface system (MIS) from icotek! This split cable entry system is designed to facilitate the installation of cables with or without connectors, in combination with industrial connectors of the Han 3A and Han 4A types.

Split cable entry frame with HAN 3A / HAN 4A connection

Industrial connectors can now be easily inserted directly into the cable entry frame.

The MIS frame system is a space- and time-saving solution for routing cables with or without contacts, and at the same time an interface for transmitting signals and power via a HAN 3A / 4A connector

Market innovation

Main features:

  • Splitable construction:
    The MIS consists of a frame (mounting housing for 3A/4A socket insert), a cover, two screws and a locking element. This design allows for easy installation and maintenance without having to disconnect existing cables.
  • Flexibility:
    The mating part includes a housing for the 3A/4A pin insert and a cable gland, either M20 for cable diameters 6–12 mm or M25 for cable diameters 13–18 mm, providing adaptability depending on cable size.
  • High protection class:
    The system offers IP65 protection and meets UL Type 12 standards, ensuring robust protection against dust and water ingress.
  • Splitable construction:
    MIS is compatible and CE marked with multiple insert manufacturers, giving users flexibility in choosing components.

How does it work? With our new and unique MIS framework system from Icotek!

Market innovation

What are the main benefits of MIS?

  • Saves space and reduces installation time as no separate holes are required for connections
  • IP65 thanks to integrated gasket
  • With CE-compliant 3A or 4A inserts, compatible with inserts from different manufacturers
  • Suitable for all small inserts in the KT series and IMAS-CONNECT adapter inserts

Icotek product configurator

Configure your MIS online

New size, new possibilities - ECOR Nordic

by
New size, new possibilities - ECOR Nordic featured
New size, new possibilities - ECOR Nordic

Du har väl inte missat att vi nu har fler storlekar i vår nordiska serie för väggmonterade apparatskåp E COR-Nordic. Perfekt för den nordiska markanden med utstansade ingångar i taket.

E COR Nordic

Our market-adapted program of lacquered cabinets with punched FL21-outputs in the roof, aimed towards the Nordic market.

Från 600x600 till 1400x1400 mm
For more information

HTC Multi flange

In combination with our multi flanges HTC-50, you can connect up to 250 cables to one and the same cabinet up to IP66.

Rivets are included with each flange
For more information

Ny storlek, nya möjligheter

Väggskåp med utstansade FL21 i tak!

Ny storlek, nya möjligheter – E COR Nordic. För att möta våra kunders efterfrågan på den populära apparatskåpsserien E COR – Nordic har vi nu utökat serien med ytterligare en modell:

B600 x H600 x D300

As before, these cabinets are pre-punched with FL21-holes in the roof and are in stock for immediate delivery!

Durability and safety in every meter - UNEX

by
Durability and safety in every meter - UNEX featured
Durability and safety in every meter - UNEX

Hållbarhet och säkerhet i varje meter – UNEX – Vi på C-Pro är glada att meddela att vi har svarat på den kraftigt ökade efterfrågan på våra halogenfria kabelkanaler från Unex genom att avsevärt utöka vårt lager. Detta strategiska drag säkerställer att vi kan fortsätta möta våra kunders behov med oöverträffad effektivitet.

UNEX cable duct

The cable duct receives the most prestigious quality mark on the market as well as a variety of approvals. It is i.a. certified for applications in the railway, marine and pharmaceutical industries.
For more information

New Size Available!

To meet the varying needs of our customers, we have recently launched a new size in our range:

30100HF (B30 H100)

This new dimension provides even greater flexibility in cable management, especially in tight spaces or where greater capacity is required.

Fördelar med UNEX Halogenfria Kabelkanaler

  • Fire safety: Our halogen-free ducts reduce the development of smoke and toxic gases in the event of a fire.
  • Environmentally friendly: Made with sustainability in mind to reduce environmental impact.
  • High Quality: Robust construction for long-lasting performance in demanding environments.
  • Versatile: Suitable for a variety of applications in industry and construction.

Immediate Delivery Guaranteed

Thanks to our expanded inventory, we are proud to announce that all sizes of our halogen-free cable ducts, including the new 30100HF, are always available for immediate delivery. This means you can plan your projects with confidence, knowing that the necessary materials will be on hand when you need them.

Explore Our Range

Whether you are a long-time customer or considering using UNEX products for the first time, our dedicated team is ready to assist you. We offer expert advice to help you choose the perfect solution for your specific needs.

Kontakta oss idag för att diskutera hur våra halogenfria kabelkanaler kan förbättra säkerheten och effektiviteten i dina installationer.

Modular contact blocks with push-in and screw connection

by
Modular contact blocks with push-in and screw connection - C-Pro
Modular contact blocks with push-in and screw connection

Machines and systems are becoming more and more compact and the installation space is getting smaller. This is a problem for powerful contact elements because they have to be dimensioned accordingly. The consequence: the installation depth is often too high, which makes it difficult to use in limited spaces.

Contact block MK with screw connection

- Voltages up to 480V and currents up to 3A.
- High contact force on the cable of up to 2.5 mm² cross section.
For more information

MKP with push-in connection

- Significantly less cabling time compared to screws.
- Stable contact even on very strong vibrations.
For more information

Maximum performance, minimum size

Thanks to the well-thought-out design, the contact blocks of the MK series are compact despite the high electrical power, so that the installation depth is significantly lower.

Five factors played an important role in the development of the new MK contact blocks:

Quick assembly - Compactness - Flexibility - Performance - Robustness

Schlegel Logo C- Pro - Produkter för Applikationer Inom El & Automation.

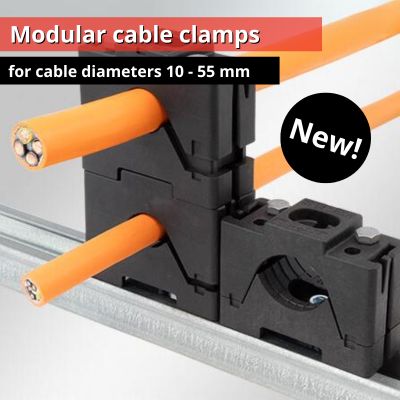

Modular Cable clamps - Infinitely expandable!

by
Modulära Kabelklämmor - featured

The modular cable clamps MSMC from icotek MSMC are stackable and have been developed for a simple, fast and safe fastening of cables, pipes and other cylindrical components. You mount them easily to surfaces and C-rails. The big advantage of this cable clamp is that it can be flexibly extended by stacking or row mounting.

Modular cable clamps for cable diameters 10 – 55 mm

Infinitely expandable!

  • Clamping range from 10 to 55 mm
  • High strain relief acc. EN 62444
  • Suitable for large bending radii of rigid cables
  • Stability and anti-rotation protection
  • Corrosion, weather and UV resistance
  • Expandable by stacking or lining up

The modular cable clamp consists of an upper and a lower part and hexagon screws. You use a coupler to easily connect several cable clamps horizontally. The longitudinal and transverse ridges on the support surface absorb torsional and tensile forces. The central mounting point (hole) gives you a higher degree of flexibility on most surfaces. For even greater stability and resistance to rotation, use two long screws for attachment.

Read more about MSMC

90° adapter for cable entry frames & plates

by
90° Adapter för Kabelgenomföringsramar & plattor featured
90 adapter for cable entry frames & plates

The new cable entry adapter KEA from Icotek enables 90° routing of cabling with Cable Entry Frames and Cable Entry Plates in size 24 (KEL-ER 24, KEL DPU 24 m.m.).

The adapter protects the wiring against mechanical tension in the entry and exit areas. It is mounted horizontally or vertically via screws & nut, alternatively using threaded bushings. Gasket is included and suitable punches are offered if required.

Universal 90° adapter for Icotek products

Revolutionary Cable Management for Industrial Automation

The cable entry adapter KEA is ideal for industrial applications where space is limited and cable protection is essential. It offers a reliable solution for cable management in various environments, from equipment cabinets to machines and plants.

Advantages:

• Quick and easy assembly – partially tool-free (R variant)
High packing density in combination with cable entry plates (size 24)
Mechanical protection at cable entry and exit due to the closed housing
• Space saving design – shifts the bend radius outwards
• Universal adapter compatible with many icotek products in size 24
• Built-in edge protection and wall sealing for increased safety

Technical specifications:
• IP class: IP54, IP65, IP66
• Flame class: UL94-V0, self-extinguishing
• Operating temperature: -40 C° to 120 C°
• Material: Polyamide (silicone-free, halogen-free)
• Mounting: Screw type mounting, Snap-in
• Properties: Vibration proof,

For more information

XXL Boxes for big ideas! - C-Pro

by
MBI-L featured
Plastkapslingar XXL - MBI-L

Vi presenterar våra nya MBI-L-kapslingar! De senaste månaderna har vi fått allt fler förfrågningar om större plastkapslingar från kunder som arbetar inom maskin- och systemteknik eller inom sektorn för förnybar energi, framför allt sol- och vindkraft. Våra kunder behöver hållbara och rymliga kapslingar för att installera och skydda sina elektroniska komponenter.

May we introduce?

Plastic enclosures XXL for big ideas!? We are pleased to announce that we have expanded our range of MBI junction boxes!

Our new MBI-L enclosures, where “L” stands for “Large” , meet all these requirements:

  • XXL-sized enclosures that offer more space for innovation and creativity
  • Robust and durable , ideal for demanding industrial environments
  • Guaranteed availability and 100% quality-controlled production at our factory in Kirchlengern, Germany

Which new sizes are available?

We have expanded our popular MBI range with four new enclosure sizes in color grey RAL 7035 . In addition, two new enclosure sizes are available in elegant black RAL 9005.

Grey RAL 7035Size mmTechnical drawings
MBI-L-PC 302013B200 H130 D300MMKOOK
MBI-L-PC 302019 B254 H185  D300MMKOOK
MBI-L-PC 403013 B300 H130 D400MMKOOK
MBI-L-PC 403019B300 H185 D400MMKOOK
Black RAL 9005
MBI-L-PC BK 302013B200 H130 D300MMKOOK
MBI-L-PC BK 403019B300 H185 D400MMKOOK

Key features

  • Systematic focus on requirements in industrial installations
  • Suitable for use in challenging outdoor applications
  • Enclosure bases with metric pre-formed knockouts or plain side walls
  • Variety of metric knockouts for cable entries
  • Knockouts at the backside of the enclosure base for cable entry from the rear
  • Improved knockout design for a defined positioning of the knockout tool
  • Multiple fixing points in the base of the enclosure
  • Low weight compared to enclosures made of aluminum, stainless steel or sheet metal
  • High stability thanks to optimized wall thicknesses
  • Individual side designs with special mould inserts
  • Corrosion-free plastic cover screws
  • Various fastening options on walls or machines
  • Completely recyclable 🌱
mbil7-1

Technical Specifications

  • Protection class IP66
  • Seamlessly foamed-in 2-component polyurethane gasket
  • Impact resistance IK08 (DIN EN 50102:1997-09)
  • Glass-fibre reinforced polycarbonate
  • UV-resistant (UL 746C F1)
  • Self-extinguishing (UL 94 V0) in color grey and black
  • Flammability classification UL 94 V2 with transparent cover

Efficient production and first-class quality

Gothenburg
Tagenevägen 70
425 37 Hisings Kärra

Stockholm
Telefonvägen 30, 1 tr
126 26 Hägersten

C-Pro logo

C-Profil AB – Tagenevägen 70
SE-425 37, Göteborg, Sweden

Facebook Instagram Linkedin
Products

Cabinets & Boxes

Air conditioning

Cable entry systems

Control units

Power Distribution

Cable Ducts

Conduits

Pages

The Company

Contact

Library

News

Partners

Terms

Code Of Conduct

Delivery terms

Privacy Policy

Environmental declaration

Legal notice



Newsletter
Receive our newsletter directly in your mailbox.

copyright © 2024 C-Profil.se | created by fredrik roslund

C-Pro-logo
