2024-08-29

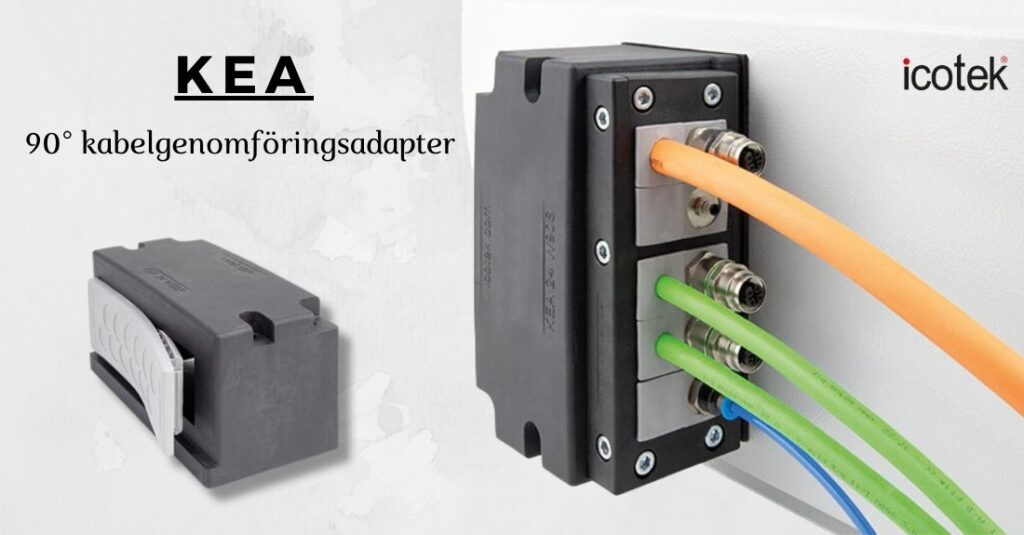

90° adapter for cable entry frames & plates

Protects the cabling against mechanical stress in the input and output areas

90 adapter for cable entry frames & plates

The new cable entry adapter KEA from Icotek enables 90° routing of cabling with Cable Entry Frames and Cable Entry Plates in size 24 (KEL-ER 24, KEL DPU 24 m.m.).

The adapter protects the wiring against mechanical tension in the entry and exit areas. It is mounted horizontally or vertically via screws & nut, alternatively using threaded bushings. Gasket is included and suitable punches are offered if required.

Universal 90° adapter for Icotek products

Revolutionary Cable Management for Industrial Automation

The cable entry adapter KEA is ideal for industrial applications where space is limited and cable protection is essential. It offers a reliable solution for cable management in various environments, from equipment cabinets to machines and plants.

Advantages:

• Quick and easy assembly – partially tool-free (R variant)
High packing density in combination with cable entry plates (size 24)
Mechanical protection at cable entry and exit due to the closed housing
• Space saving design – shifts the bend radius outwards
• Universal adapter compatible with many icotek products in size 24
• Built-in edge protection and wall sealing for increased safety

Technical specifications:
• IP class: IP54, IP65, IP66
• Flame class: UL94-V0, self-extinguishing
• Operating temperature: -40 C° to 120 C°
• Material: Polyamide (silicone-free, halogen-free)
• Mounting: Screw type mounting, Snap-in
• Properties: Vibration proof,
