Drainage device
M50 for cabinets & enclosures, IP66
Drain valve is an effective solution for draining condensation in enclosures with a high protection class without compromising IP66.
The water-permeable membrane drains condensation via capillary effect while the design prevents the penetration of splash water.
Specification
| Article: | Drainage device |
|---|---|
| Category: | Ventilation & Drainage |
| Brand: | icotek |
| IP rating: | IP66, IP67, IP69K (EN 60529) |
| Temperature: | −45 C° to 70 C° |
| Mounting options: | Fasten with locknut |
Do you need a price & more information?
Product description
In cabinets and boxes with a high protection class, temperature differences lead to condensation. By using a drain valve, it is possible to safely remove the condensation without losing the protection class of IP66. A water-permeable membrane ensures the drainage of the casing due to its capillary effect. The design prevents splash water from entering the interior of the housing. The drain valve is attached to the bottom of the cabinet in a hole of Ø 50.5 0.5 mm.
- Make sure that the sealing ring is on the outside and that the hole is free of burrs
Drawing
Article number
Accessories
Video
Document
You may also need...
14 m³/h - 178 m³/h
Touch protection, frame, filter, cable

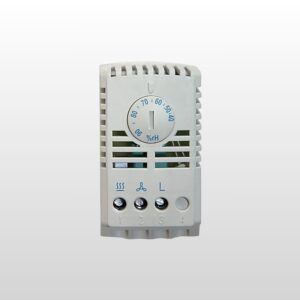

Compensates for changes in humidity

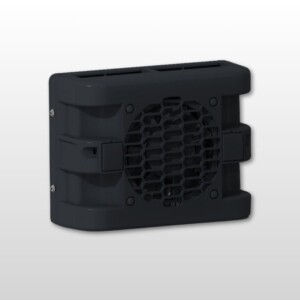

To dehumidify enclosures and small control panels
