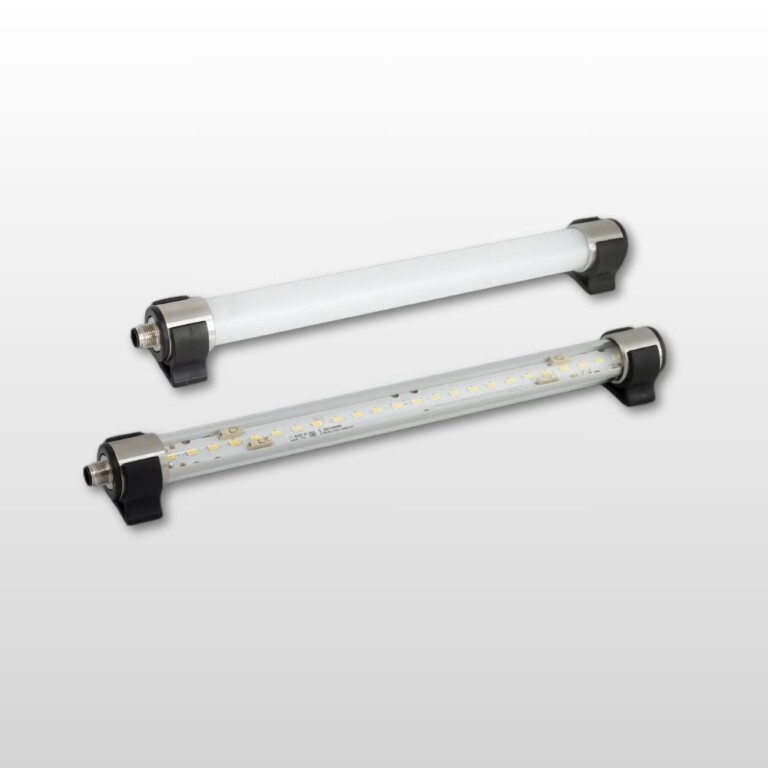

Belysning LED | Tube
Robust LED lighting | 24V DC | 1000 lm, 1700 lm & 3400 lm | IP67
Lighting LED / Tube provides efficient and robust lighting for machinery and equipment with standardized M12 connection and a service life of up to 50,000 operating hours.
The luminaire is available with tubes made of chemical-resistant borosilicate glass or impact-resistant polycarbonate and is not affected by oil, water, chemicals or varying temperatures.
Specification
| Article: | Tube |
|---|---|
| Category: | Lighting |
| Brand: | icotek |
| Luminous flux: | 1000 lumens | 1700 lumens | 3400 lumens |
| IP Rating: | IP67, Protection class III (Protective extra low voltage) |
| Temperature: | -20°C to 50°C |
| Tube material: | Polycarbonate |
| Material Tube: | Borosilicate glass |
| Material End pieces: | Stainless steel |
| Mounting options: | Screw mounting & Snap-in |
| Voltage: | 24V DC |
Do you need a price & more information?
Product description
Lighting LED / Tube provides efficient lighting for machines and equipment, with M12 connectors for standardized connection. The fixture is easy to mount, rotates and offers a circuit-independent lifespan of 50,000 operating hours. Depending on the application, you can choose different materials for the tubes: Lighting LED / Tube is available in chemical-resistant borosilicate glass and in impact-resistant polycarbonate. Varying temperatures, oil, water or various chemicals therefore affect neither the brightness nor the lifespan.
Advantages:
- Chemical-resistant borosilicate glass or impact-resistant polycarbonate tube
- Protection class IP67
- Completely maintenance-free product
- High energy efficiency thanks to High Power LED
- Compact round design ø 28 mm, suitable for tight installation situations
- Simple retrofitting in existing machines
- With rotating LED tube
- End pieces in stainless steel
- Cable connection via M12 connector
Lighting LED / Tube provides efficient lighting for machines and equipment, with M12 connectors for standardized connection. The fixture is easy to mount, rotates and offers a circuit-independent lifespan of 50,000 operating hours. Depending on the application, you can choose different materials for the tubes: Lighting LED / Tube is available in chemical-resistant borosilicate glass and in impact-resistant polycarbonate. Varying temperatures, oil, water or various chemicals therefore affect neither the brightness nor the lifespan.
Article number
| Art.No | Description | Capacity | Input voltage DC | Luminous flux | Mounting & Assembly | Width mm | Height mm | Length | Protection class | |
|---|---|---|---|---|---|---|---|---|---|---|
| 81502 | Lighting LED TUBE | 8W | 24V | 1000 lumens | Screw/Snap-in | 34 | 36 | 296 | IP67 | |
| 81500 | Lighting LED TUBE | 13 W | 24V | 1700 lumens | Screw/Snap-in | 34 | 36 | 565 | IP67 | |
| 81501 | Lighting LED TUBE | 26W | 24V | 3400 lumens | Screw/Snap-in | 30 | 39 | 1075 | IP67 |
Drawing
Accessories
Video
Document
