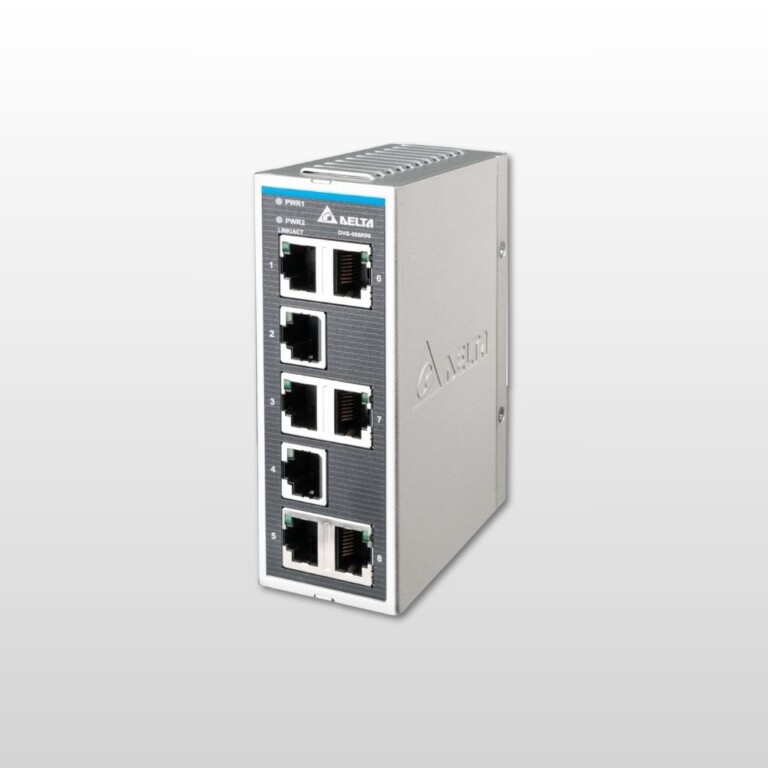

Fast Ethernet Switch / DVS-008R00

  • 8-port
  • Compact size

Description

FEATURES
Fast Ethernet Switch / DVS-008R00

  • Compact size allows quick and easy installation in tiny spaces
  • Supports IEEE 802.1p based QoS for packt forwarding precedence
  • Transparent transmission of VLAN tagged packets
  • 12 to 48 VDC redundant terminal block power input
  • Jumbo frame size up to 2,000 Bytes
  • -20°C to 70°C wide operating temperature
  • Compatible with various industrial protocols, including EtherNet/IP, Profinet, CC-LINK IE, and DNP 3.0

Specifications

TECHNOLOGY
Standard Compliance

  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-T(X)
  • IEEE 802.3x Flow Control
  • IEEE 802.1p Class of Service, Priority Protocols

PROCESSING TYPE
Store and Forward

  • IEEE 802.3x Flow control in full duplex, back-pressure flow control in half duplex

INTERFACE
Fast Ethernet

  • RJ45-portar: 8 10/100Base-T(X), automatisk MDI/MDI-X, automatisk förhandling

PERFORMANCE AND SCALABILITY

  • Switching Capacity: 1.6Gbps, Wired speed, Non-blocking switching fabric
  • Forwarding Rate: 2,4Mpps
  • MAC Address Table: 2K
  • Packet Buffer Memory: 768K bits
  • Jumbo Frame: 2,000 Bytes
  • Transparent Forwarding VLAN Tagged Packets: Default enabled
  • IEEE 8021.p based QoS: Default enabled

POWER REQUIREMENT

  • Input Voltage: 2 sets, 12 to 48VDC redundant terminal block input
  • Input Current: Max. 0.2A
  • Overload Current Protection: Present, max. input current 0.8A
  • Reverse Polarity Protection: Present

PHYSICAL

  • Housing: IP40 rating metal case
  • Dimensions: 115 mm (H) x 40 mm (W) x 80 mm (D)
  • Weight: 230g
  • Installation: Industrial DIN-Rail and wall mounting

ENVIRONMENTAL LIMITS

  • Operating Temperature: -20°C to 70°C (-4°F to 158°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Ambient Relative Humidity: 5% to 98% (non-condensing)

APPROVALS

  • Safety: UL 61010, IEC 62368-1, KC, EAC
    EMI: FCC 47 CFR Part 15 Subpart B Klass A, IEC 61000-6-4, EN 55032 (CISPR 32), EN 55011, ICES-003 :2020, ICES-Gen :2018, RCM EMS (IEC 61000-61000- , IEC 61131-2, EN 55035, EN 55024): EN 61000-4-2 Nivå 4, EN 61000-4-3 Nivå 3, EN 61000-4-4 Nivå 3, EN 61000-4-5 Nivå 2, EN 61000-4-6 nivå 3, EN 61000-4-8 nivå 4, EN 61000-4-29
  • Shock: IEC 60068-2-27
  • Freefall: IEC60068-2-32
  • Vibration: IEC 60068-2-6
  • Hi-Pot: 1.5KV



Article number

Art.NoDescriptionPDFCAD3D-CAD
DVS-008R00Fast Ethernet Switch 8-port.pdf.cad.3dcad
