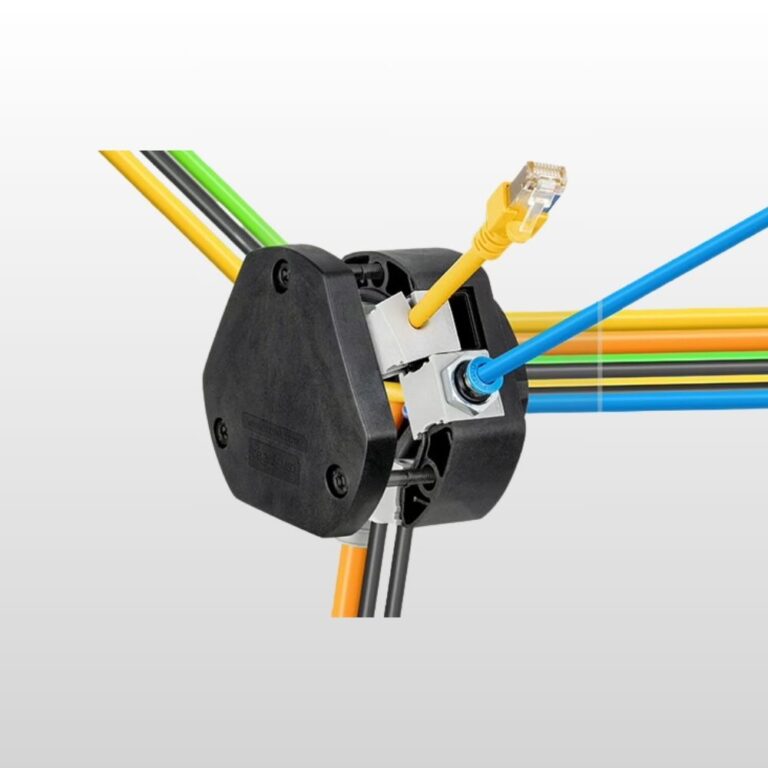

Distribution Box 360° / DB
Divisible box
for cables with or without connector
M32 - M75
IP54
Distribution Box 360° is a cable distribution solution for industrial installations, developed to collect, route and distribute cables in 360° in all directions.
The solution enables sealing and strain relief according to EN 62444 for cables with or without contacts and provides high cable density with metric holes M32–M75.
Specification
| Article: | Distribution Box 360° / DB |
|---|---|
| Category: | Cable glands for cables with connectors |
| Brand: | icotek |
| Protection class: | IP54 |
| Temperature: | −40°C to 140°C |
| Material: | Polyamide |
| Mounting options: | Fasten with locknut |
| Characteristics: | Vibration-proof, Silicone-free, Halogen-free |
Do you need a price & more information?
Product description
With Distribution Box 360° / DB can distribute bundled cables (with or without connectors) and route them 360° in all directions. Cables (with or without connectors) and with a diameter of 1 to 15mm can be routed, sealed and provided with strain relief according to EN 62444. The Distribution Box 360° is suitable for metric holes M32-M75 and can be fixed with a lock nut, which is included in the delivery. Up to 48 possible positions and thus high cable density through multi-inserts. Thanks to the simple screw mounting and the use of divisible inserts, reinstallations, repairs and maintenance can be handled very easily and smoothly.
Advantages:
- Quick and easy assembly
- Easy distribution of cables in a 360° angle
- Warranty on pre-terminated cables remains
- Re-installations, repairs and maintenance can be handled very easily and smoothly
- Suitable for metric cut-outs M32 – M75
- Strain relief according to EN 62444
- Use of the proven KT grommet system
- ´High cable density, wide variety of grommet
- High flexibility with the use of multi-range and IMAS-CONNECT™ adapter grommets
- Hexagonal locknut included in the delivery
- High stability, vibration resistant
- Mechanical protection of the central entry point
