Split EMC cable gland / KVT-DS
För inledning och avskärmning av kablar | Med gängning M32/M63 | IP55
Specification
| Article: | Split EMC cable gland / KVT-DS |
|---|---|
| Category: | EMC cable entry, Cable glands for cables with connectors |
| Brand: | icotek |
| IP Rating: | IP54, IP55 |
| Material: | Polycarbonate (conductive) |
| Material lock nut: | Brass, nickel-plated / Plastic |
| Flammability: | UL94-HB |
| Temperature: | −40°C till 90°C |
Do you need a price & more information?
Betyg: 5/5
Product description
Delbara kabelförskruvningen EMC-KVT-DS är baserad på icotek produkten KVT och är metalliserad för att möjliggöra en bra strömledning.
The front cable grommet (KT) is used for strain relief and cable sealing on the cable jacket. The cable shield is contacted over 360° via the rear conductive grommet (EMC-KT).
A conductive flat gasket, which is included in the delivery, connects the cable gland to the conductive housing wall. This can be an advantage when the housing wall is not painted and therefore conductive.
The contact to the metal wall is established via the special EMC lock nut. This can be an advantage when the metal wall to which the EMC-KVT-DS is to be attached is not painted and therefore conductive.
Advantages:
- Both conducted and field-bound disturbances can be reliably diverted
- Scratch-resistant surface
- Contacting the cable shield over 360°
- EMC grommets made entirely from conductive elastomer
- Very good dissipation values
- Very good shielding effect with regard to EMC tightness
Drawing
Article number
Accessories
Video
Document
You might also like…
Kan kopplas in | För kablar med kontakt | För håltagning M32 - M63 | IP54
För kablar med kontakt | M20 - M63 | IP54 | UL Typ 12
För kabeldiametrar 1 till 35 mm | IP66/IP68 | UL Type 12/4X*

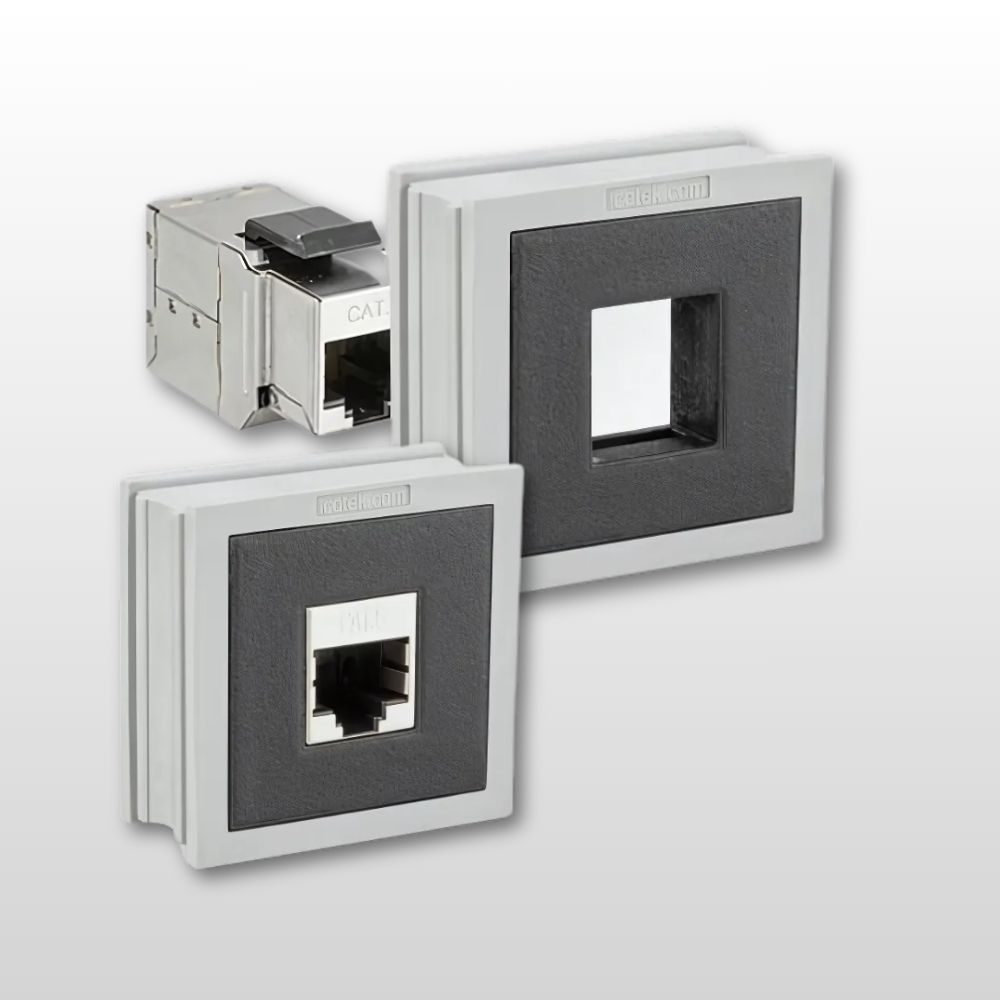

IMAS-CONNECT™ | För Keystone-uttag | IP54
