Junction box / SDV

Junction Box in IP66, RAL7035

Junction box / SDV

Junction Box in IP66, RAL7035

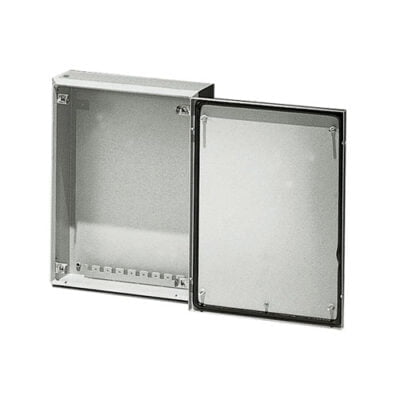

Junction box / SDV made of 1.2 mm thick sheet steel. Drawer equipped with holes for fixing selectable hinges and lids with fixing screws.

The delivery includes:

Junction box consisting of enclosure and screwed cover.

ORDER:

Description
Art.No

Description

Junction box / SDV made of 1.2 mm thick sheet steel. Drawer equipped with holes for fixing selectable hinges and lids with fixing screws.

The delivery includes:

Junction box consisting of enclosure and screwed cover.

PRODUCT INFORMATION

ETA standard powder coating in epoxy polyester
RAL 7035 textured finish
IP66 according to IEC EN62208; EN62262
NEMA 4 complies with UL5O8A; UL5O
Degree of protection guaranteed by two-component polyurethane foam
Impact resistance IK10 according to IEC EN62208; EN62262

Download

Art.No

Art.No	Width	Height	Depth	Pc
SDV1108	150	150	80	1
SDV2208	200	200	80	1
SDV3208	300	200	80	1
SDV4208	400	200	80	1
SDV5208	500	200	80	1
SDV6208	600	200	80	1
SDV8208	800	200	80	1
SDV1112	150	150	120	1
SDV2212	200	200	120	1
SDV3112	300	150	120	1
SDV3212	300	200	120	1
SDV3312	300	300	120	1
SDV4212	400	200	120	1
SDV4312	400	300	120	1
SDV4412	400	400	120	1
SDV5212	500	200	120	1
SDV5312	500	300	120	1
SDV6212	600	200	120	1
SDV6312	600	300	120	1
SDV6412	600	400	120	1
SDV8212	800	200	120	1
SDV8412	800	400	120	1
