Junction box / SDF

Junction Box with flange plate, IP66, RAL7035

Junction box / SDF

Junction Box with flange plate, IP66, RAL7035

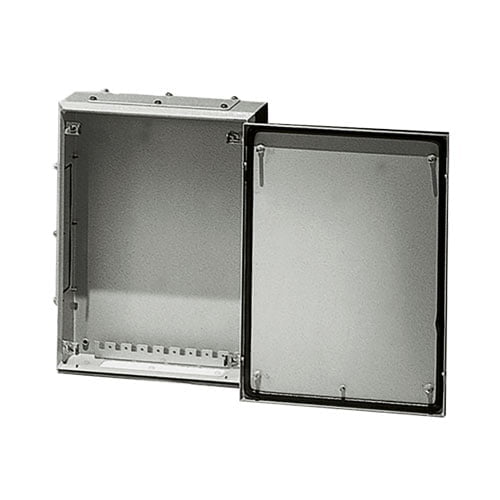

Junction box / SDF made of 1.2 mm thick steel. Drawer equipped with holes for attaching hinges and flange plate complete with gasket. Lid fixed with fixing screws.

The delivery includes:

Junction box composed of box and cover and holes to attach optional hinges.

ORDER:

Description

Junction box / SDF made of 1.2 mm thick steel. Drawer equipped with holes for attaching hinges and flange plate complete with gasket. Lid fixed with fixing screws.

The delivery includes:

Junction box composed of box and cover and holes to attach optional hinges.

PRODUCT INFORMATION

ETA standard powder coating in epoxy polyester
RAL 7035 textured finish
IP66 uppfyller IEC EN62208; EN62262
NEMA 4 som uppfyller UL508A; UL50
Degree of protection guaranteed by two-component polyurethane foam
Impact resistance IK10 according to IEC EN62208; EN62262

Art.No

Art.No	Width	Height	Depth	Pc
SDF3212	300	200	120	1
SDF3312	300	300	120	1
SDF4212	400	200	120	1
SDF4312	400	300	120	1
SDF4412	400	400	120	1
SDF5212	500	200	120	1
SDF5312	500	300	120	1
SDF6212	600	200	120	1
SDF6312	600	300	120	1
SDF6412	600	400	120	1
SDF8212	800	200	120	1
SDF8412	800	400	120	1

Download
