PA6, UL94 V0, medium

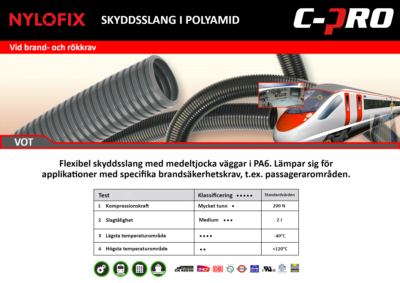

Conduit / VOT for insulation and mechanical protection of cables in electrical installations.
Especially suitable for installations in passenger areas for e.g. railway buses, railway tunnels, metro stations and general installations with special fire and smoke requirements.
The conduits is also perfect to use for installations within:
Automation, Railway Industry, Construction and Marine.
Brand: Interflex
Material: Made of specially modified polyamide (PA6)
Special patented profile for the ORJ o-ring to give a higher IP class.
Free from halogen, phosphorus and cadmium.
Self-extinguishing (V0 according to UL94)
Temperature range: -40ºC to + 105ºC (150ºC short time), UV resistant (black color)
Colors: Dark gray and Black I2F2 according to NF F16-101 standards
| Art.No Gray | Art.No Black | Size | Ø int. | Ø ext. | Bend Radius R | Meters |
| VOT-07G | VOT-07N | 7 | 6,4 | 10,0 | 15 | 50 |
| VOT-10G | VOT-10N | 10 | 9,8 | 13,0 | 20 | 50 |
| VOT-12G | VOT-12N | 12 | 12,3 | 15,8 | 30 | 50 |
| VOT-17G | VOT-17N | 17 | 16,9 | 21,2 | 40 | 50 |
| VOT-23G | VOT-23N | 23 | 22,7 | 28,5 | 55 | 50 |
| VOT-29G | VOT-29N | 29 | 28,4 | 34,5 | 65 | 50 |
| VOT-36G | VOT-36N | 36 | 36,4 | 42,5 | 80 | 30 |
| VOT-48N | VOT-48N | 48 | 47,5 | 54,5 | 95 | 30 |
Dimensions in mm
